2D Plans from Point Cloud Data

2D plans

2D as-built plans from laser scanning are scale-accurate floor plans, sections, and elevations that VDE derives directly from the point cloud of an existing building. Unlike digitised paper plans, they are based on current measurement data. Delivered in DWG, DXF, or PDF, tailored to the client's CAD environment.

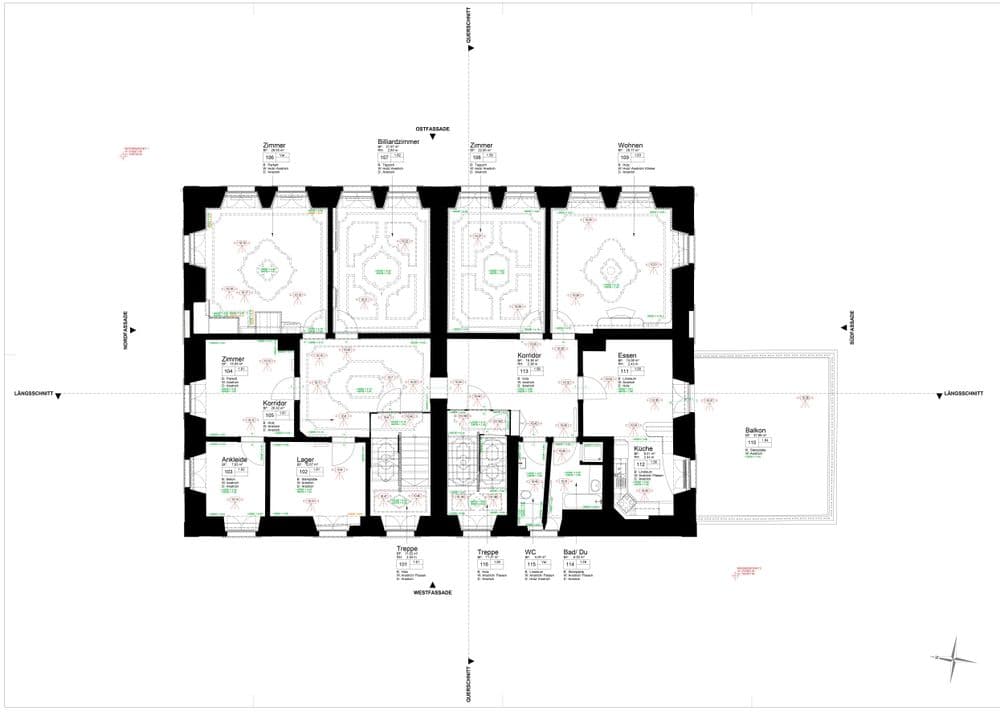

2D Grundrisse

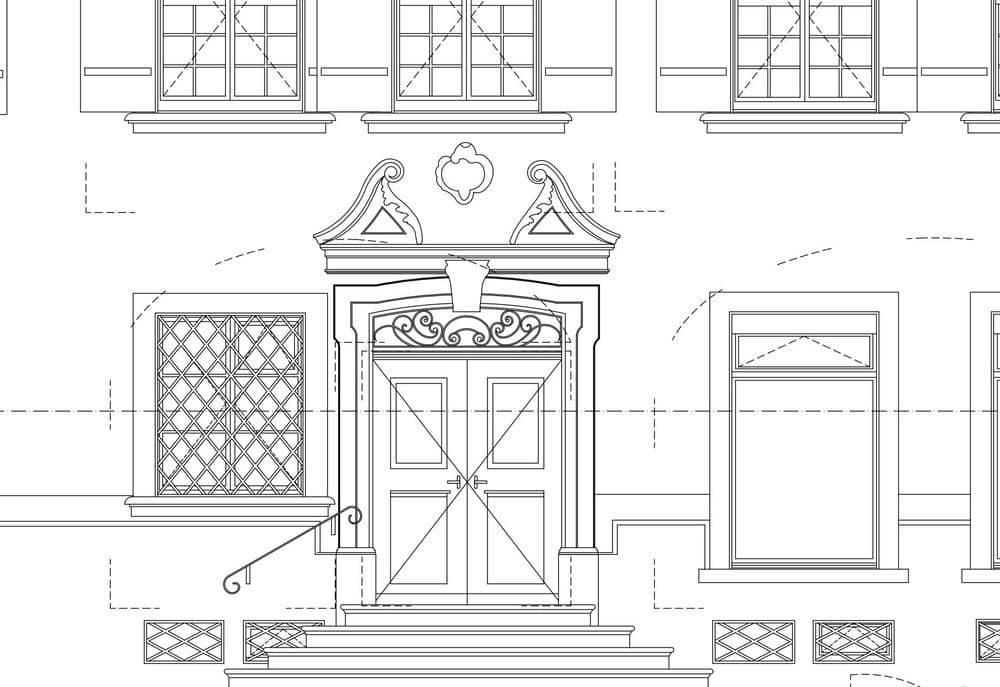

2D-Schnitt- und Fassadenpläne generiert aus präzisen 3D-Punktwolkendaten eines Bestandsgebäudes.

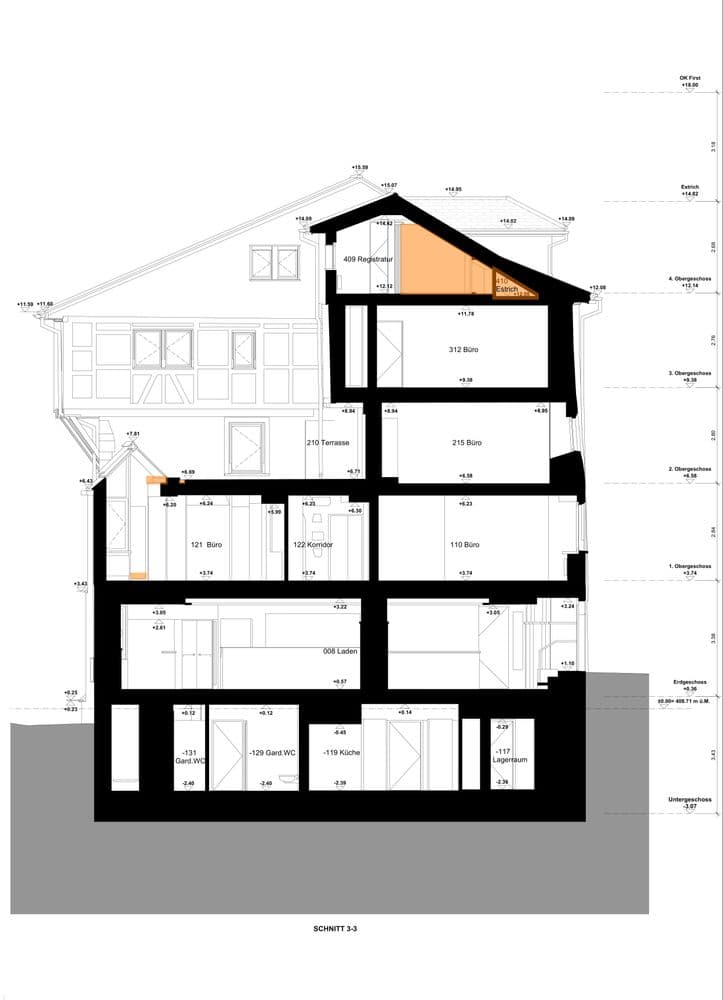

2D Schnitte

We create precise 2D plans for any construction project.

Thanks to many years of experience, data can be prepared for almost any CAD.

Get complete as well as high quality 2D floor plans, sections and elevations.
